Manage Adblocks

We can see and manage all adblocks here.

manage adblocks



We can edit, delete, block and activate the adblock here.

Here we can see the dimension, type and status of the adblock.

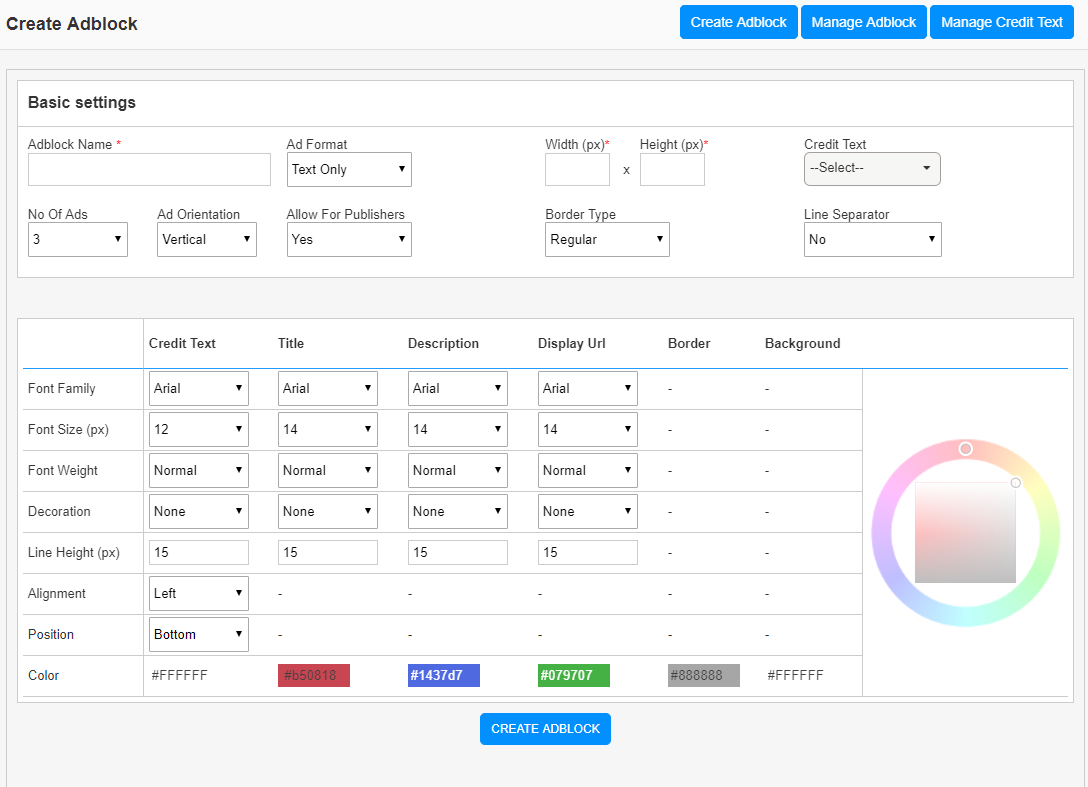

Click the “Create Adblock” button to create a new adblock.
create adblock
  • Adblock Name – This is the name of the Adblock.
  • Ad Format – We can select the ad formatof the adblock here. We have 3 options here.
    • Text only – We are displaying only the text ads in this adblock.
    • Banner only – We are displaying only banners in this adblock.
    • Text/Banner – We are displaying text ads and banner ads in the adblock.
  • Height – Enter the height of the adblock here (Only in “Text only” ad type)
  • Width  – Enter the width of the adblock here (Only in “Text only” ad type)
  • Banner Size – Select the size of the banner. (In “Banner only” and “Text/Banner” ads, the adblock size is the size of banner )
  • No. of ads – Select the number of text ads displayed in the adblock. We can select from 1 to 10.
  • Ad Orientation – We can select the ads orientation here. We have 2 types of orientation, vertical and horizontal. In  vertical orientation, the ads displayed from top to botton of adblock. In horizontal orientation, the ads displayed from left to right of the adblock. Examples are given below.XYZ Admarket - Horizontal Adblock
    Horizontal orientation of ads
    XYZ Admarket - Vertical Adblock
    Vertical orientation of ads.
  • Allow for publishers – If we are allowing this adblock for publishers, enable this option. Otherwise this adblock is available for admin only.
  • Border Type – We can select the border type from the drop down list. We have 2 types of borders, Regular (rectangular adblock) and Rounded.
  • Credit Text – Admin can select a credit text for the adblock here. Admin can create new credit text from the “New Credit Text” link. We can use text or image as a credit text.
  • Line Separator – Use this option if you want line separator between ads in an adblock.
  • Font Family (Credit Text, Title, Description, Display URL) – We can select the font of the credit text, ad title, ad description and ad display url here.
  • Font Size (Credit Text, Title, Description, Display URL) – We can select the font size of the credit text, ad title, ad description and ad display url here.
  • Font Weight  (Credit Text, Title, Description, Display URL) – We can select the font weight of the credit text, ad title, ad description and ad display url here. We can use Normal or Bold option.
  • Decoration (Credit Text, Title, Description, Display URL) – We can select the decoration of the credit text, ad title, ad description and ad display url here. We can use None or Underline option.
  • Line Height (Credit Text, Title, Description, Display URL) – This is the line height of the credit text, ad title, ad description and ad display url.
  • Alignment  (Credit Text) – The alignment (left and right) of the credit text in the adblock can set here.
  • Positioning  (Credit Text) – The positioning (top and bottom) of the credit text in the adblock can set here.
  • Color (Credit Text, Title, Description, Display URL, Border, Background)– This is the color of credit text, ad title, ad description, ad display url, border and background. We can click on the color code and select the desired color from the color wheel.
